FD10601

Series: Spike lights

size(mm): Φ65x139x267 mm

Input Voltage(V): 100-240V

Frequency(Hz): 50/60Hz

CCT: 3000/4000/6500K

CRI: 80

Flux(Lumen): 700 lm

Beam Angle: -

Safety Class: Ⅰ

IP Rating: IP65

Total Watt: 10W

Luminous efficacy(lm/W): 70

Main Material: Aluminium+PC

Diffuser: PC

Finish: Black/White/Silver/etc.

Cut off(mm): -


+86 574 6251 7002
Contact Us
Product Details
Swipe the table left and right to view more information...

Model No.Input VoltageSafety RatingLED WattLuminius FluxBeam AngleCCTIP RatingL*W*H (mm)Features
FD10601100-240VClass Ⅰ10 W700 lm
3000/4000/6500KIP65Φ65x139x267 mm
HC02105100-240VClass ⅠMax.35 W

-IP65100x105x285 mm Suitable for Max.35W of GU10 bulbs,Spike height 171mm
HC06401100-240VClass ⅠMax.35 W

-IP65100x95x280 mm Suitable for Max.35W of GU10 bulbs,Spike height 171mm
HC19901220-240VClass ⅠMax.35 W

-IP67Φ95x273 mm
HD00101220-240VClass ⅠMax.35 W

-IP6571.5x71.5x327.5 mm
HD00201220-240VClass ⅠMax.35 W

-IP65Φ72.5x324 mm
HD00301220-240VClass ⅠMax.35 W

-IP65Φ65x115x1172 mm


Subclass image display

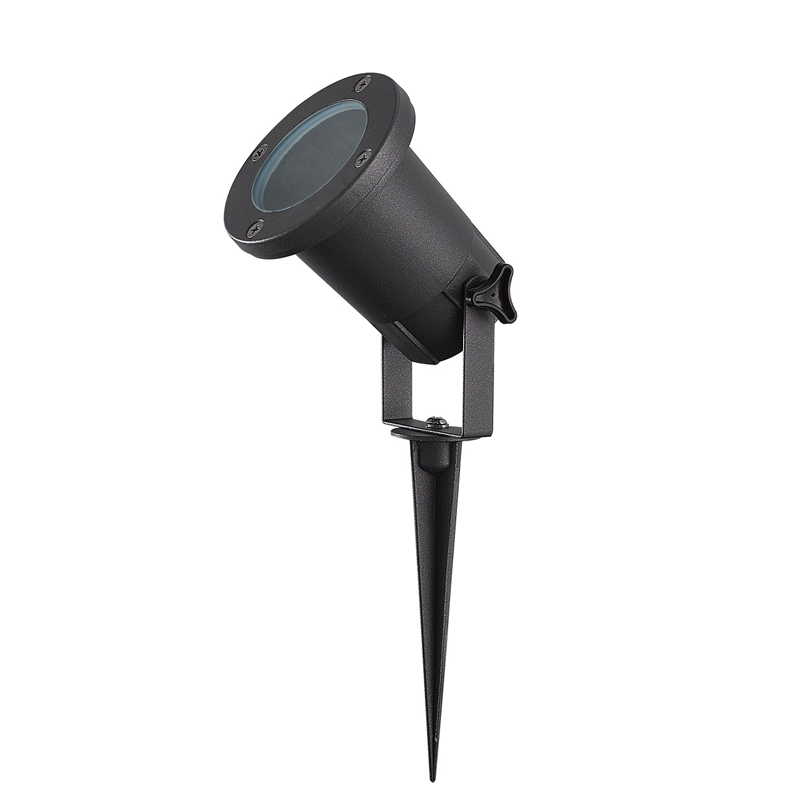

HC02105
HC02105

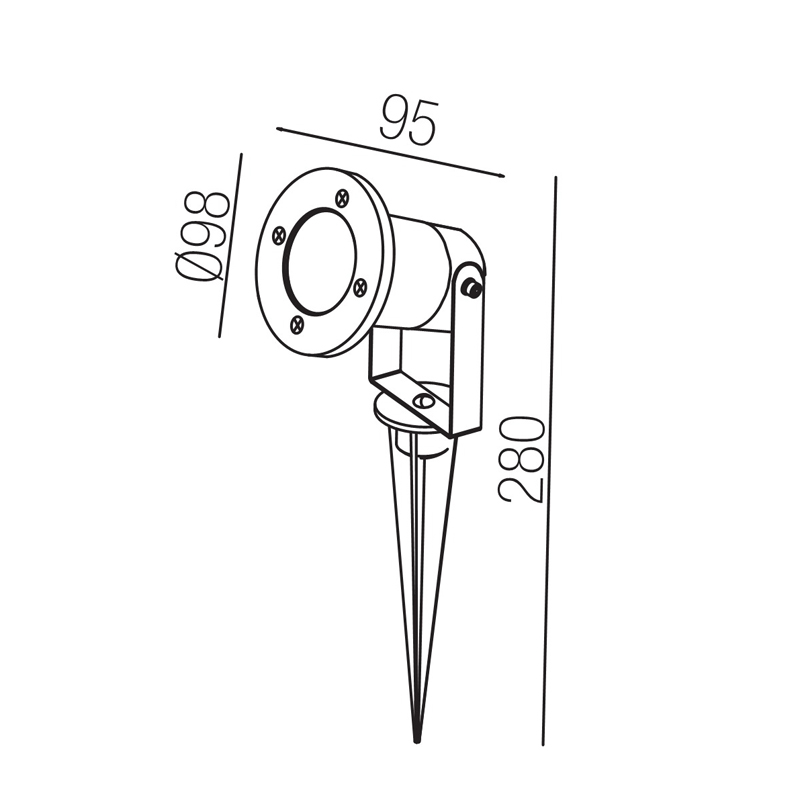

HC02105-line
HC02105-line

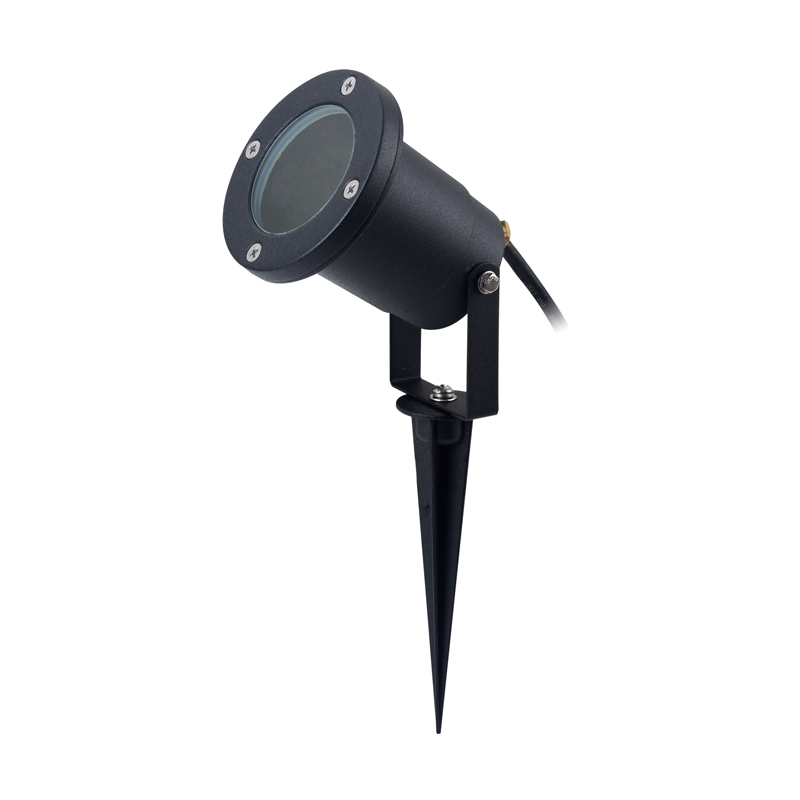

HC06401
HC06401

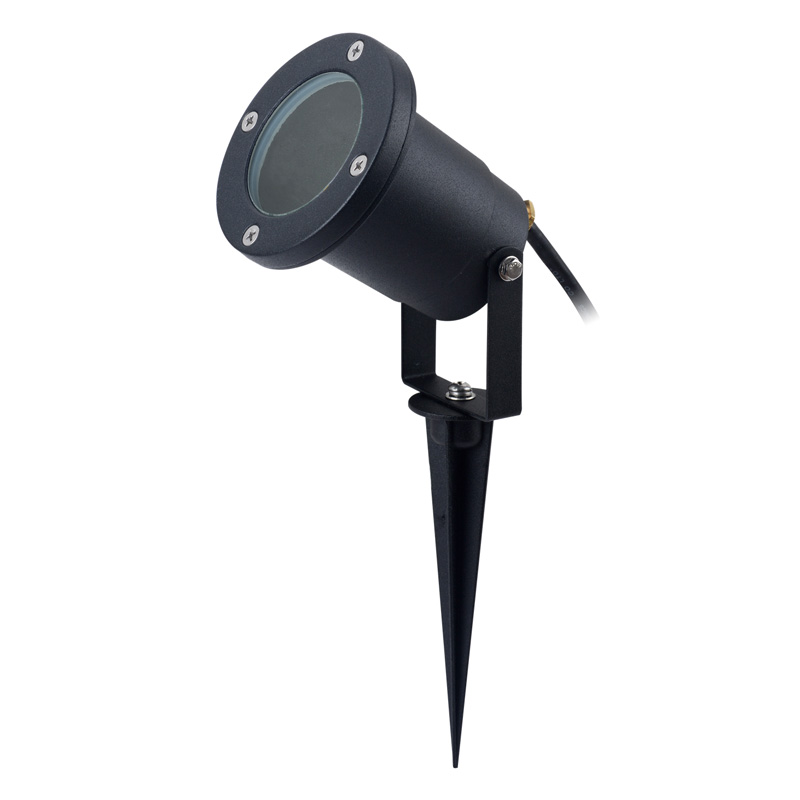

HC064011
HC064011

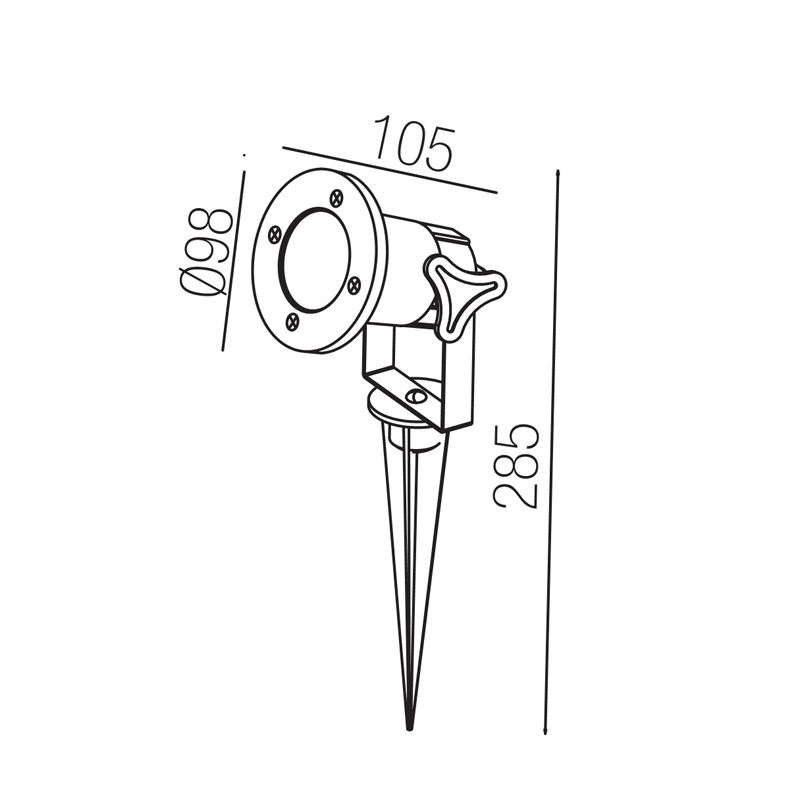

HC06401-line
HC06401-line

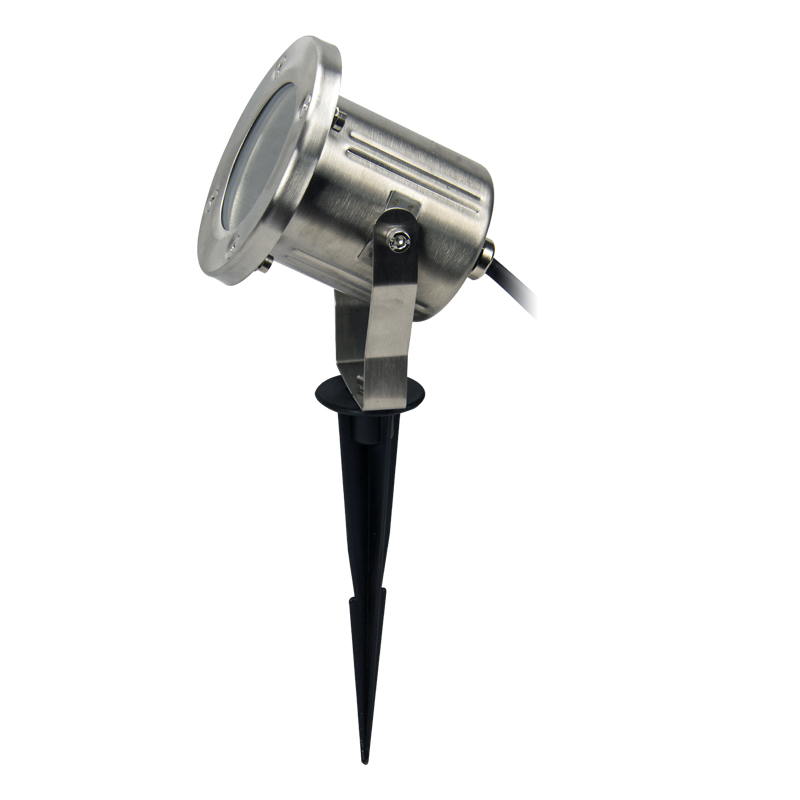

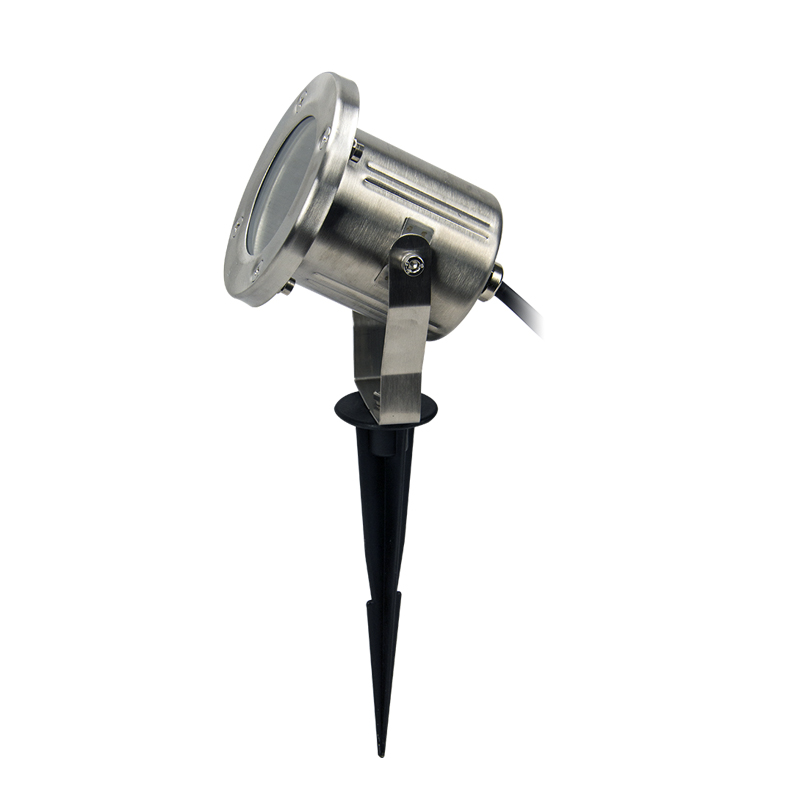

HC19901
HC19901
HC19901
HC19901

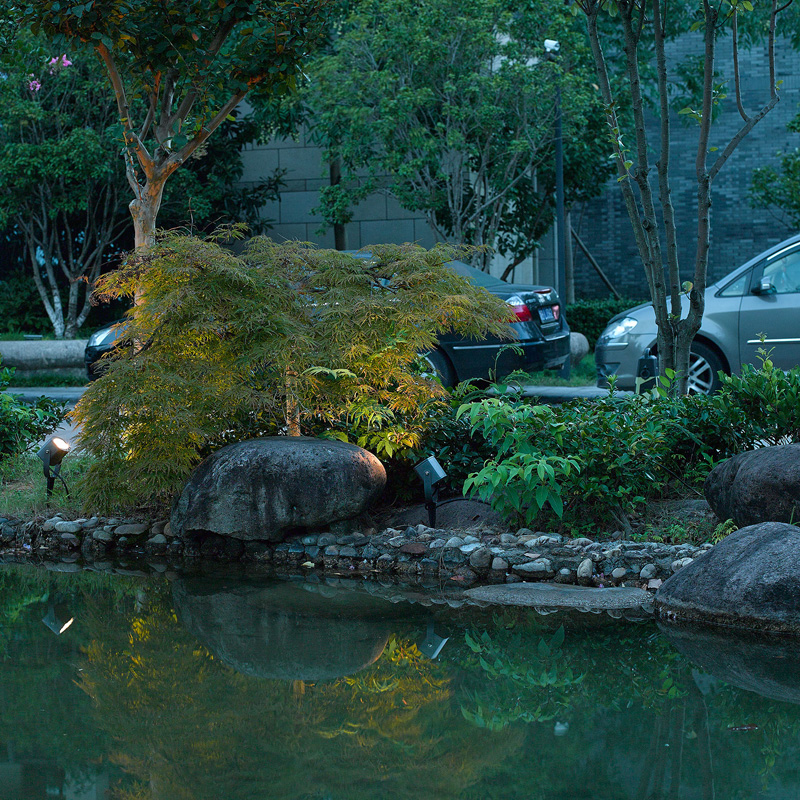

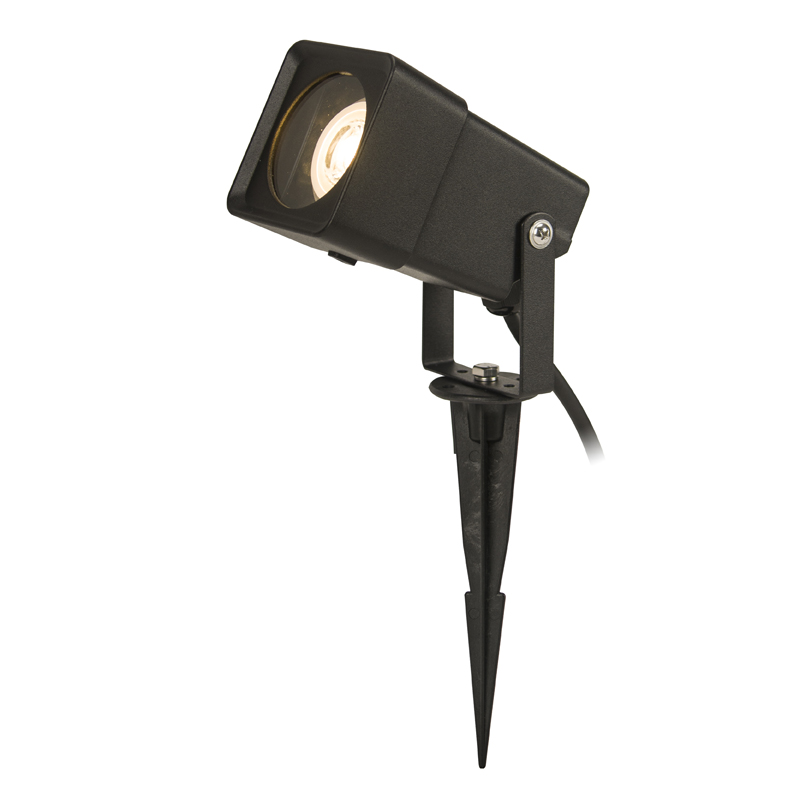

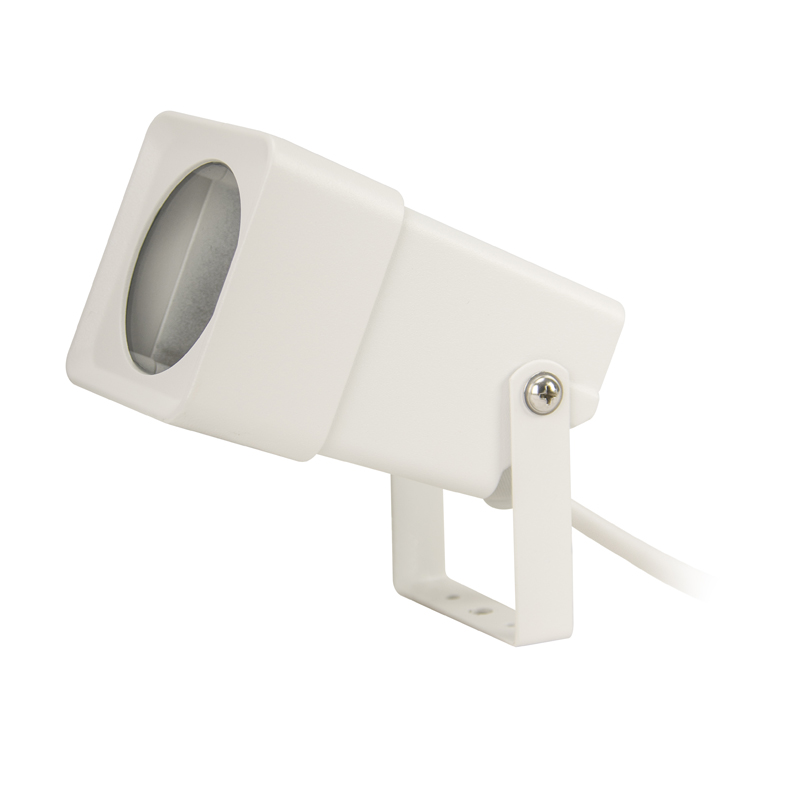

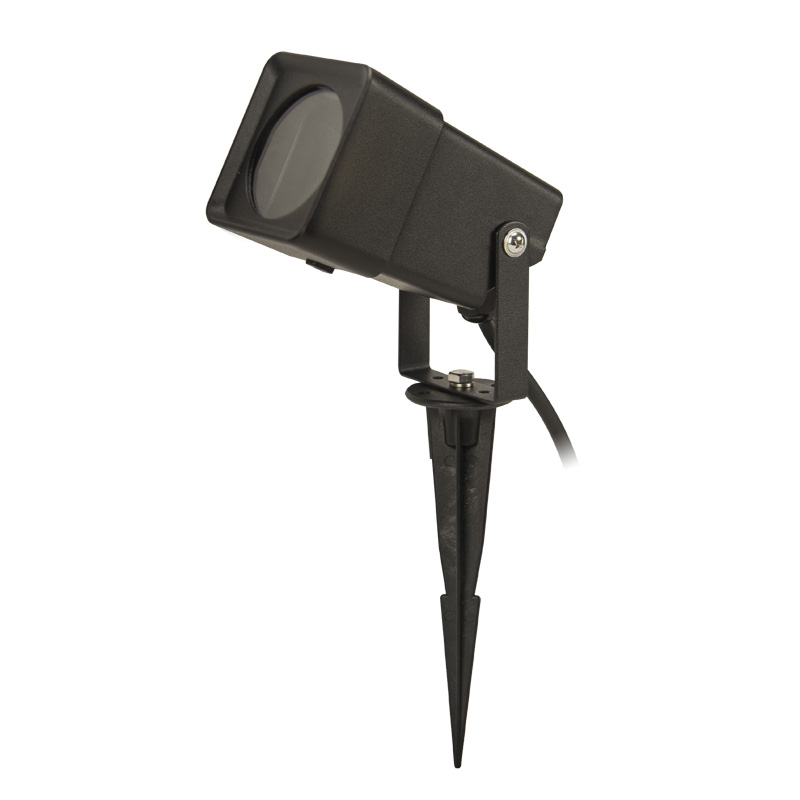

HD00101
HD00101
HD00101
HD00101
HD00101
HD00101
HD00101
HD00101

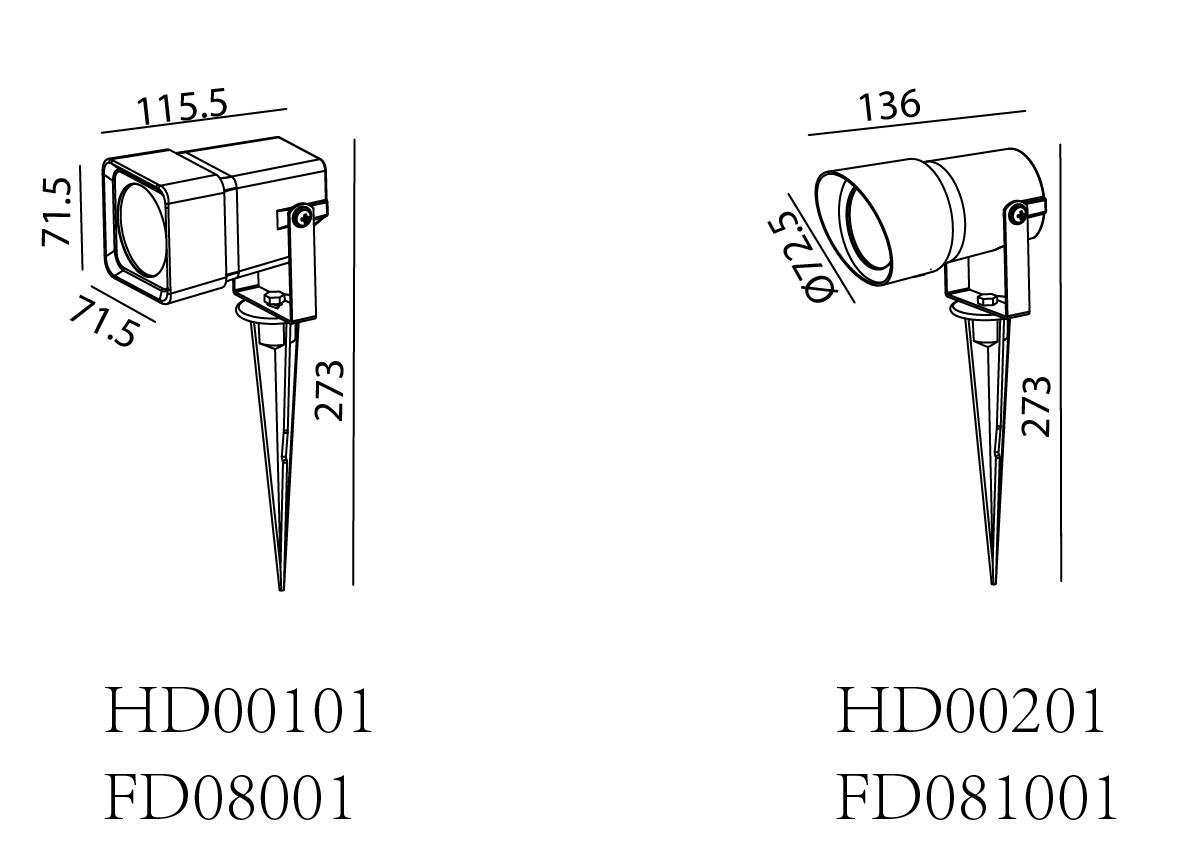

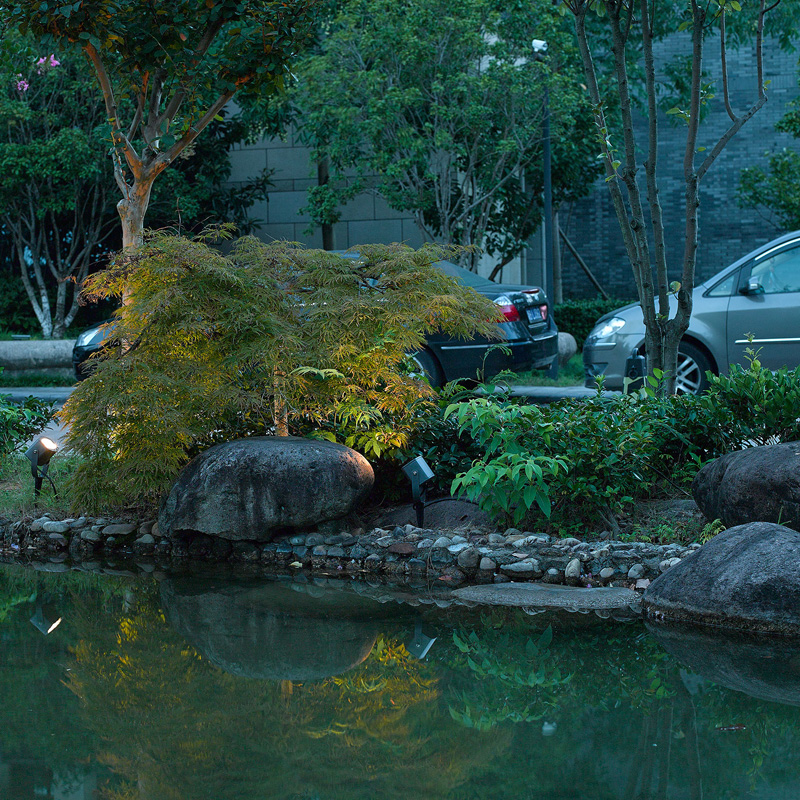

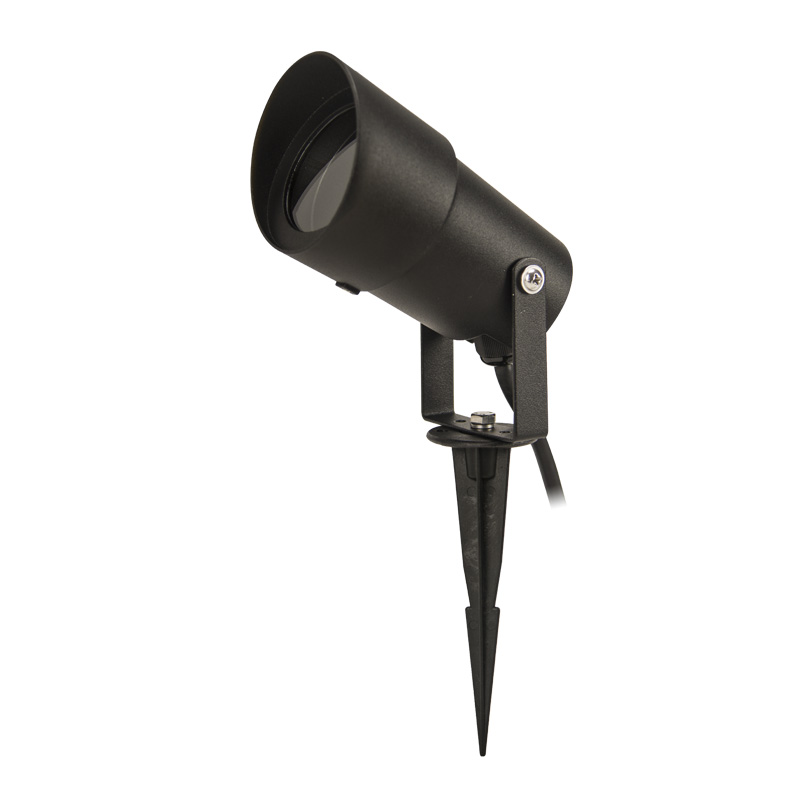

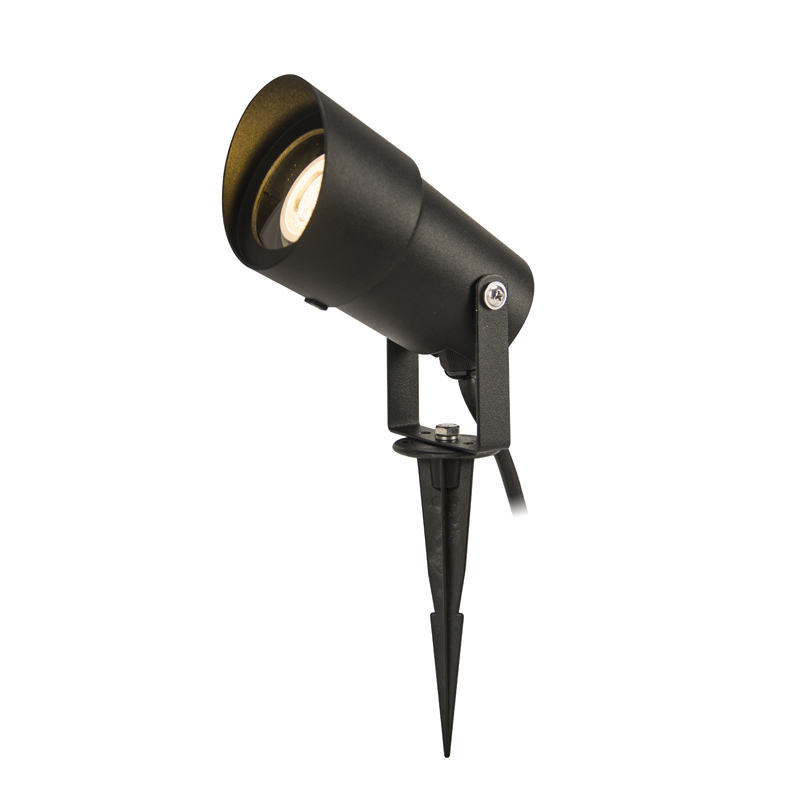

HD00201
HD00201
HD00201
HD00201
HD00201
HD00201
HD00201
HD00201

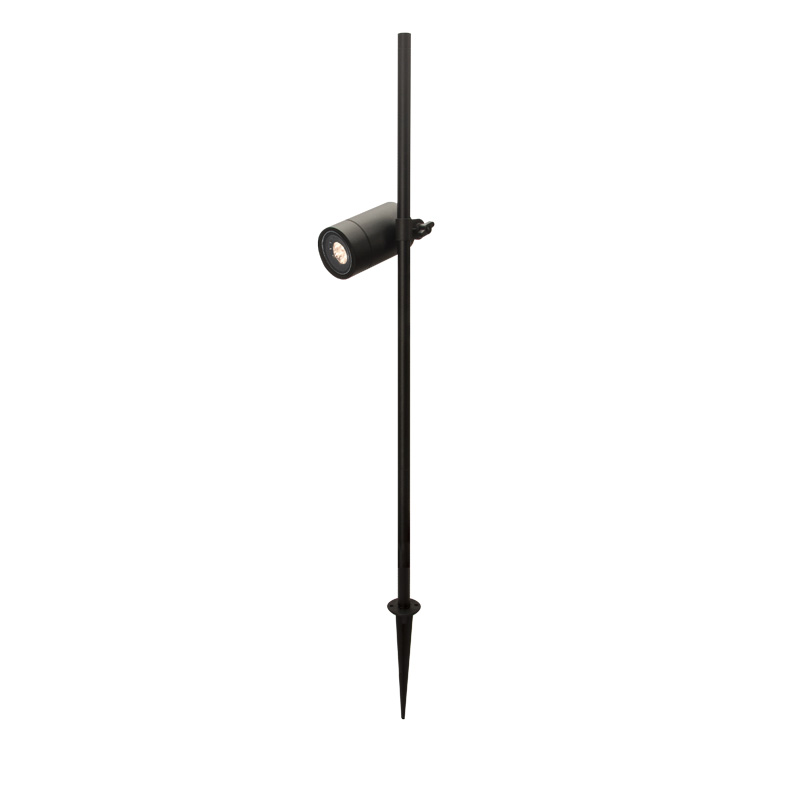

HD00301
HD00301
