GE09411
Series: Underground light
size(mm): φ140*150 mm
Input Voltage(V): 100-240V
Frequency(Hz): 50/60Hz
CCT: 3000/4000/6500K/R/G/B
CRI: 75
Flux(Lumen): 1200 lm
Beam Angle: 10/20/30/45
Safety Class: Ⅰ
IP Rating: IP67
Total Watt: 12W
Luminous efficacy(lm/W): 100
Main Material: Aluminium+Glass+ST304
Diffuser: Glass
Finish: S.ST304
Cut off(mm): 136
+86 574 6251 7002
Contact Us
Product Details
Swipe the table left and right to view more information...

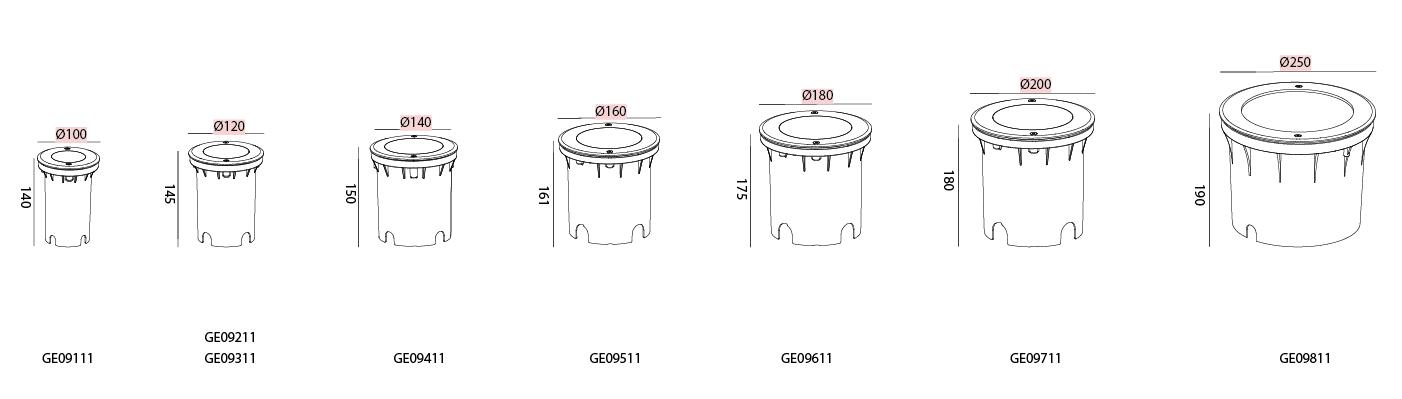

| Model No. | Input Voltage | Safety Rating | LED Watt | Luminius Flux | Beam Angle | CCT | IP Rating | L*W*H (mm) | Features |
| GE09411 | 100-240V | Class Ⅰ | 12 W | 1200 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ140x150 mm | |
| GE09111 | 100-240V | Class Ⅰ | 3 W | 240 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ100x140 mm | |
| GE09211 | 100-240V | Class Ⅰ | 6 W | 540 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ120x145 mm | |
| GE09311 | 100-240V | Class Ⅰ | 6 W | 900 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ120x145 mm | |
| GE09611 | 100-240V | Class Ⅰ | 18 W | 1800 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ180x180 mm | |
| GE09711 | 100-240V | Class Ⅰ | 24 W | 2400 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ200x180 mm | |
| GE09811 | 100-240V | Class Ⅰ | 36 W | 3600 lm | 10/20/30/45 ° | 3000/4000/6500K/R/G/B | IP67 | Φ250x190 mm |
Subclass image display

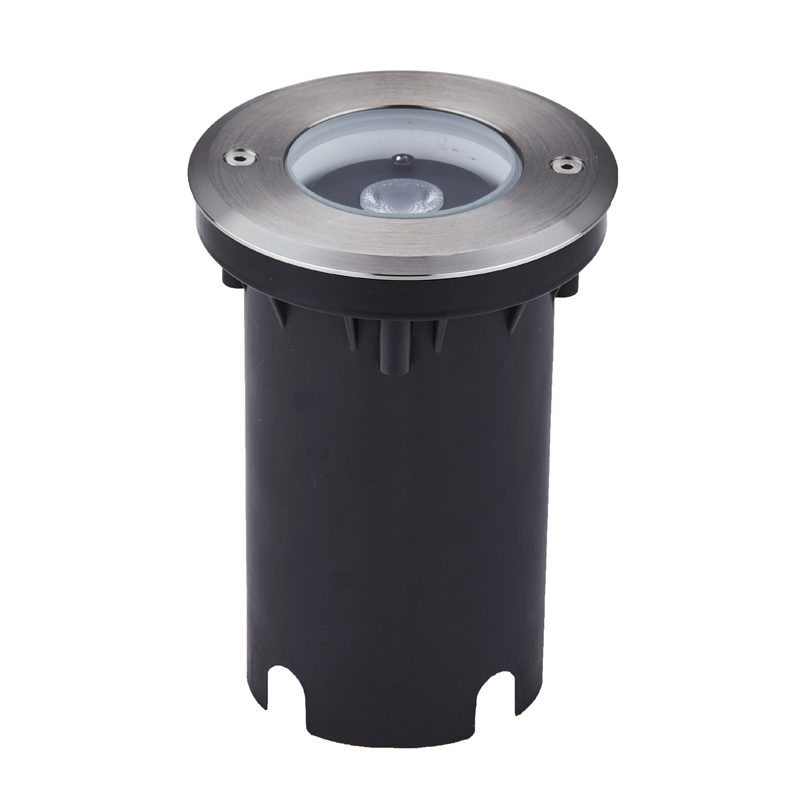

GE09111

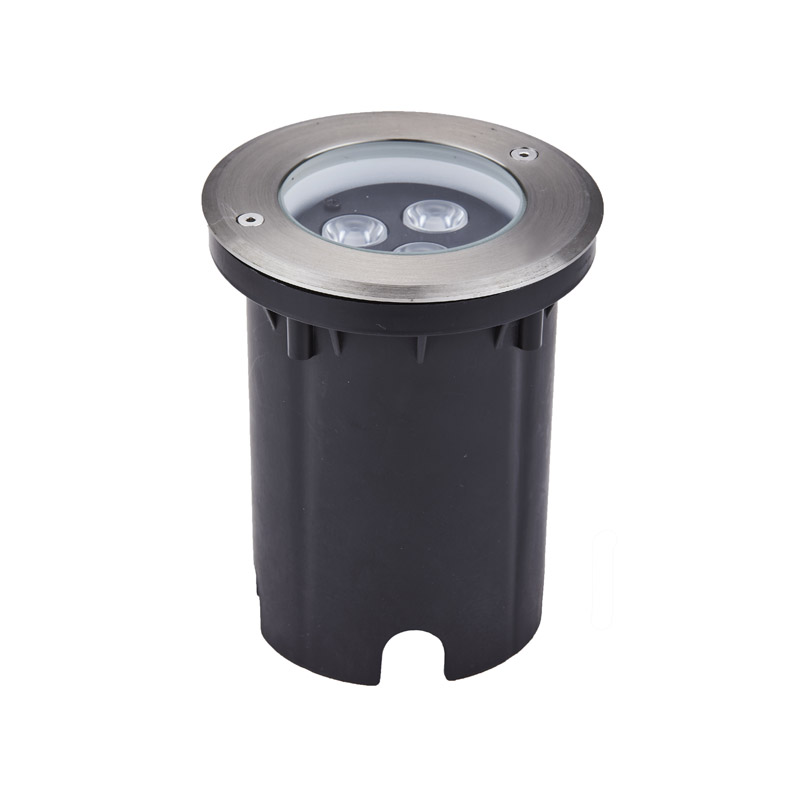

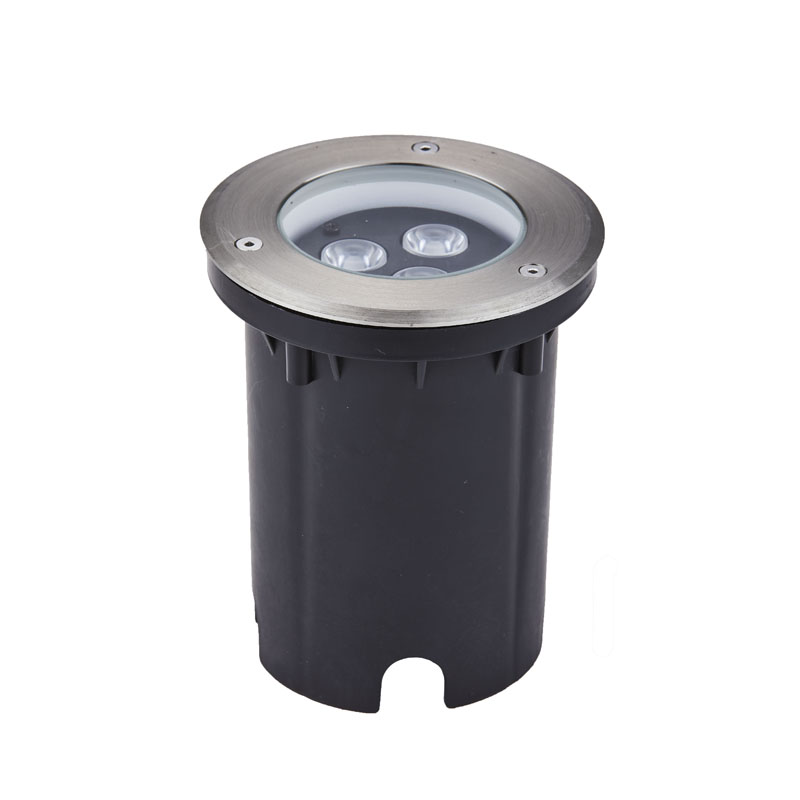

GE09211
GE09211

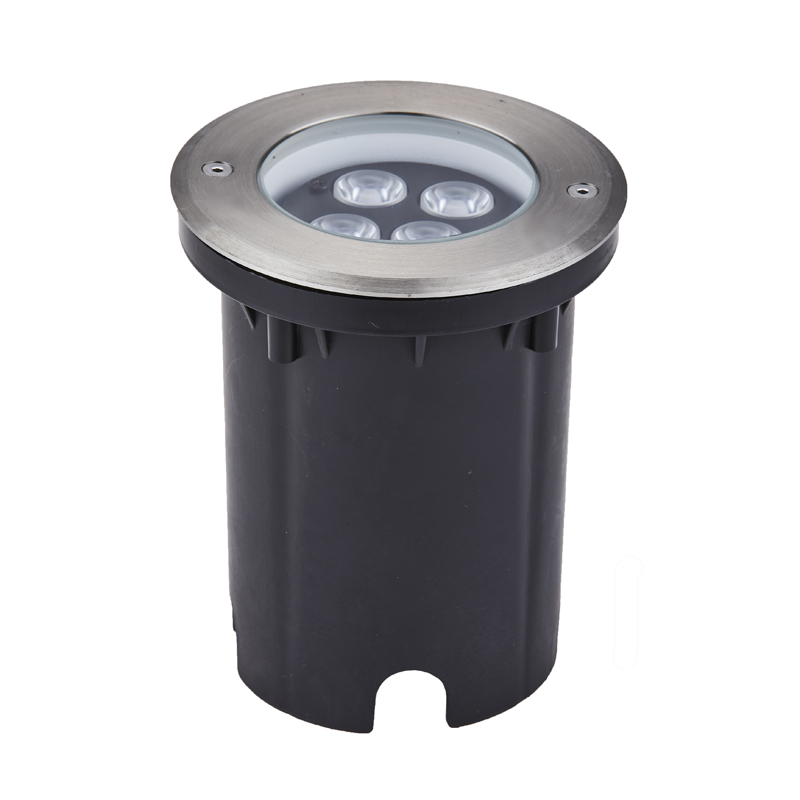

GE09311

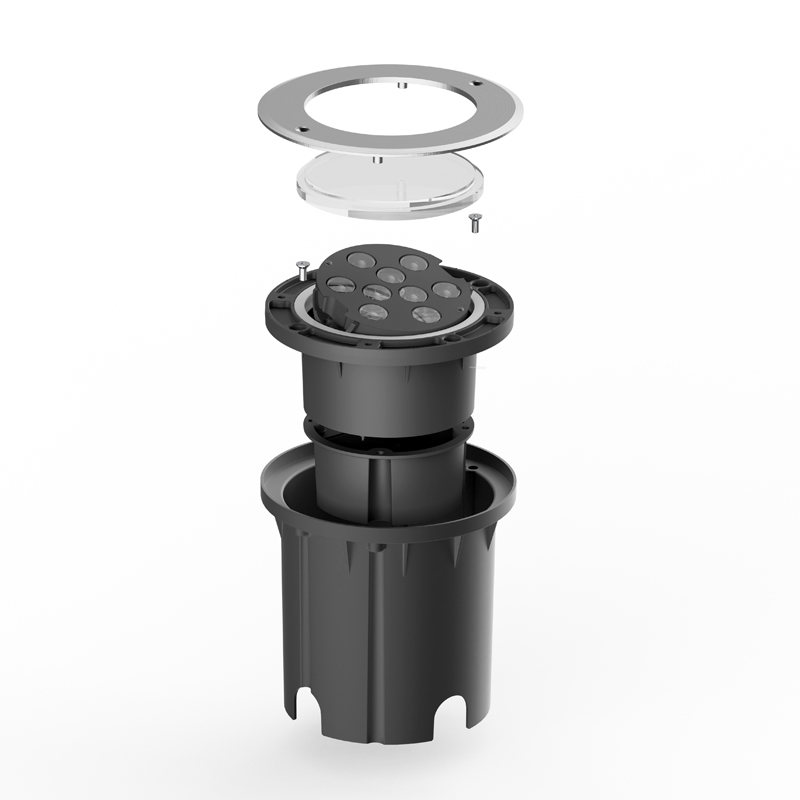

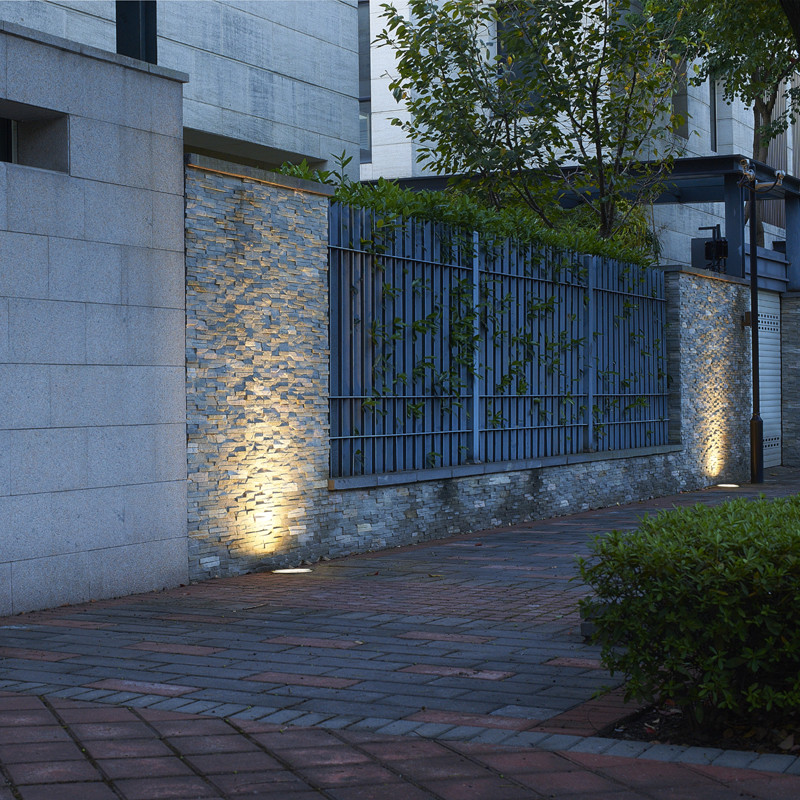

GE09611
GE09611

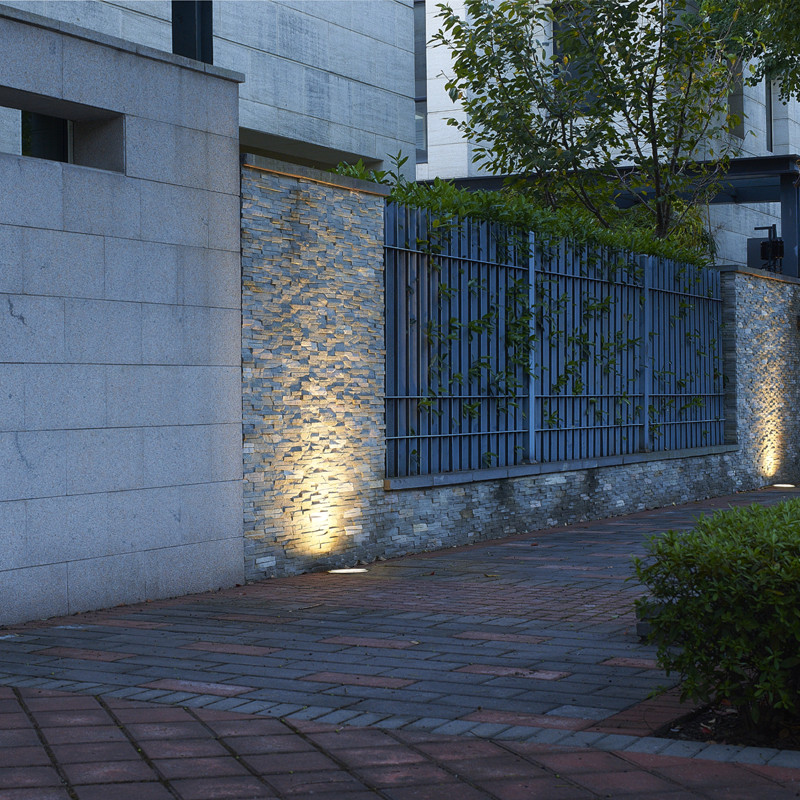

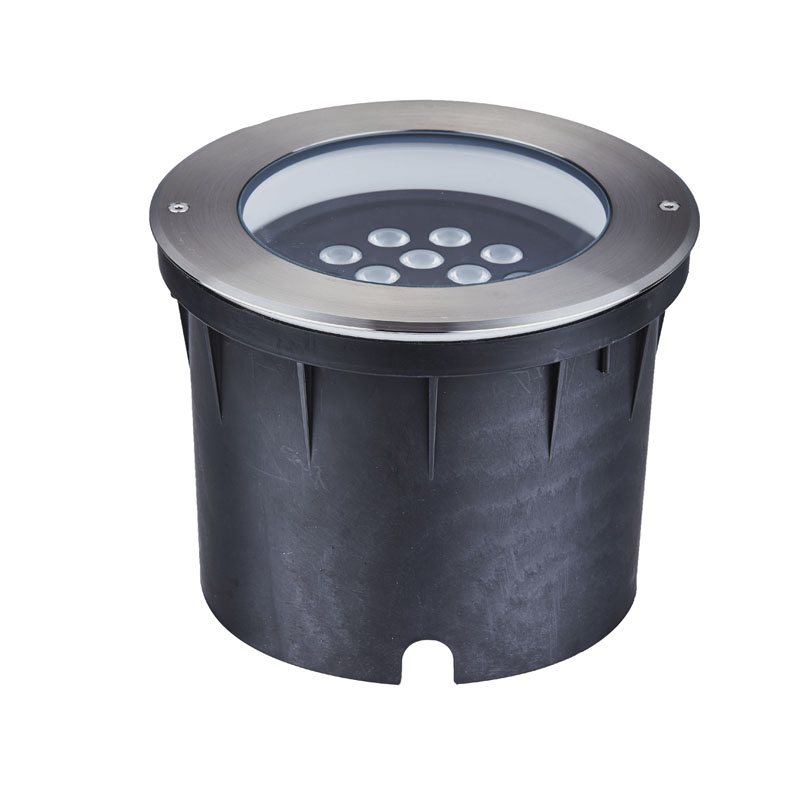

GE09711
GE09711

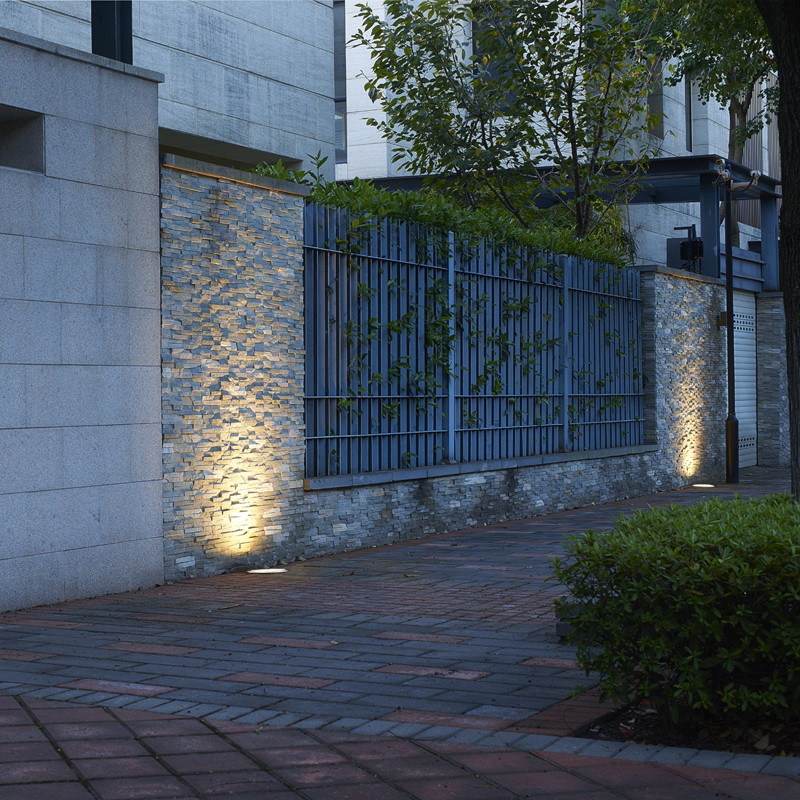

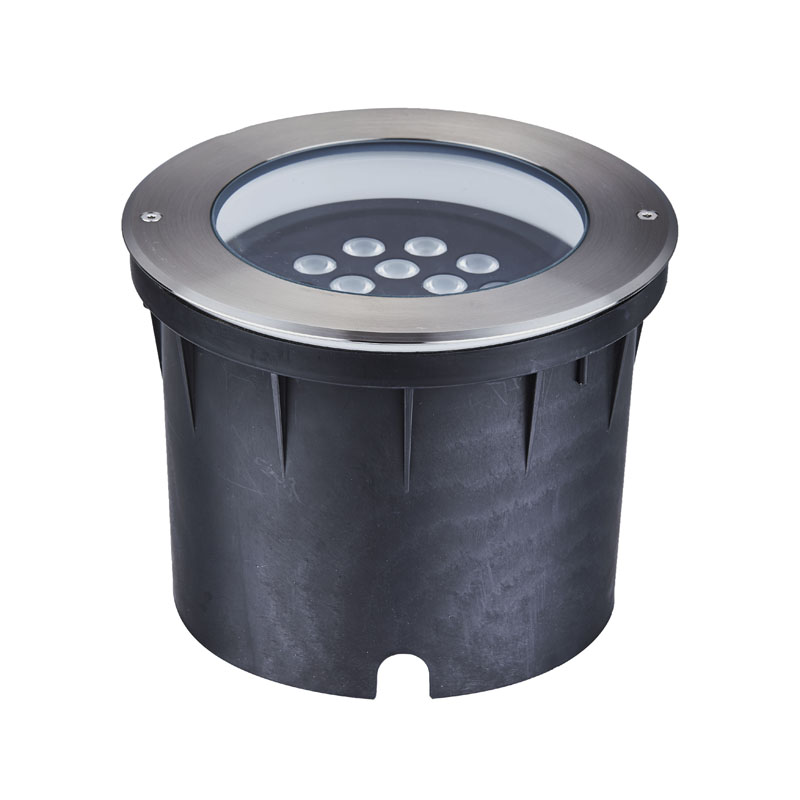

GE09811
GE09811
