GE08741
Series: Underground light
size(mm): φ200*110 mm
Input Voltage(V): 100-240V
Frequency(Hz): 50/60Hz
CCT: 3000/4000/6500K/R/G/B
CRI: 80
Flux(Lumen): 3240 lm
Beam Angle: 20/30/45/60
Safety Class: Ⅰ
IP Rating: IP67
Total Watt: 36W
Luminous efficacy(lm/W): 90
Main Material: Aluminium+Glass+ST304
Diffuser: Glass
Finish: S.ST304
Cut off(mm): φ200
+86 574 6251 7002
Contact Us
Product Details
Swipe the table left and right to view more information...
| Model No. | Input Voltage | Safety Rating | LED Watt | Luminius Flux | Beam Angle | CCT | IP Rating | L*W*H (mm) | Features |
| GE08741 | 100-240V | Class Ⅰ | 36 W | 3240 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ200x110 mm | |
| GE08041 | 100-240V | Class Ⅰ | 3 W | 210 lm | 20/30/45/60 ° | 3000/4000/6500K | IP67 | Φ90x90 mm | |
| GE08141 | 100-240V | Class Ⅰ | 6 W | 540 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ120x90 mm | |
| GE08241 | 100-240V | Class Ⅰ | 9 W | 810 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ140x110 mm | |
| GE08341 | 100-240V | Class Ⅰ | 12 W | 1080 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ140x110 mm | |
| GE08441 | 100-240V | Class Ⅰ | 15 W | 1350 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ160x110 mm | |
| GE08541 | 100-240V | Class Ⅰ | 18 W | 1620 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ160x110 mm | |
| GE08641 | 100-240V | Class Ⅰ | 24 W | 2160 lm | 20/30/45/60 ° | 3000/4000/6500K/R/G/B | IP67 | Φ180x110 mm |
Subclass image display

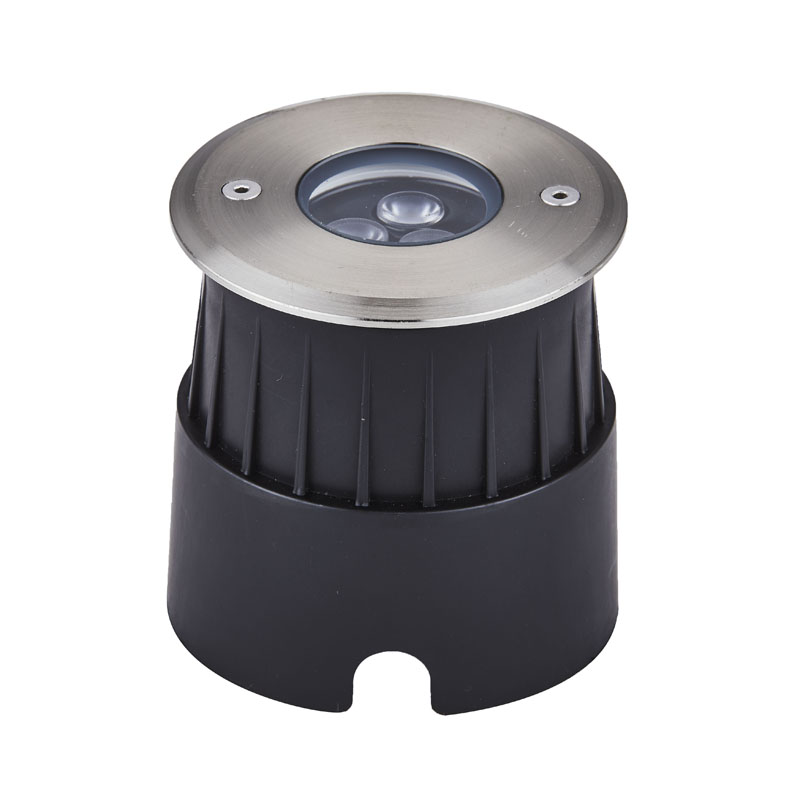

GE08041

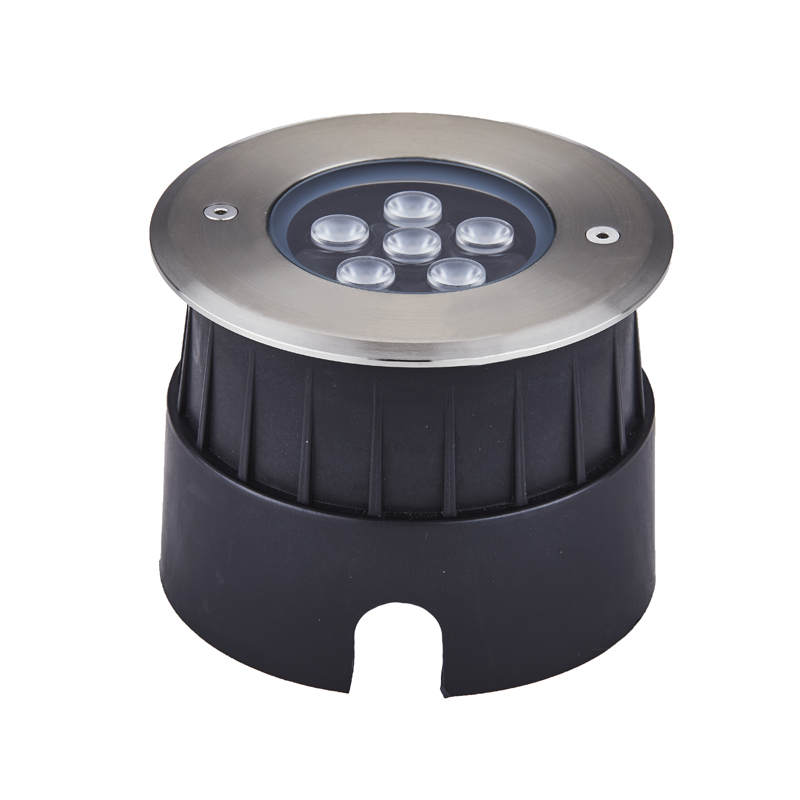

GE08141

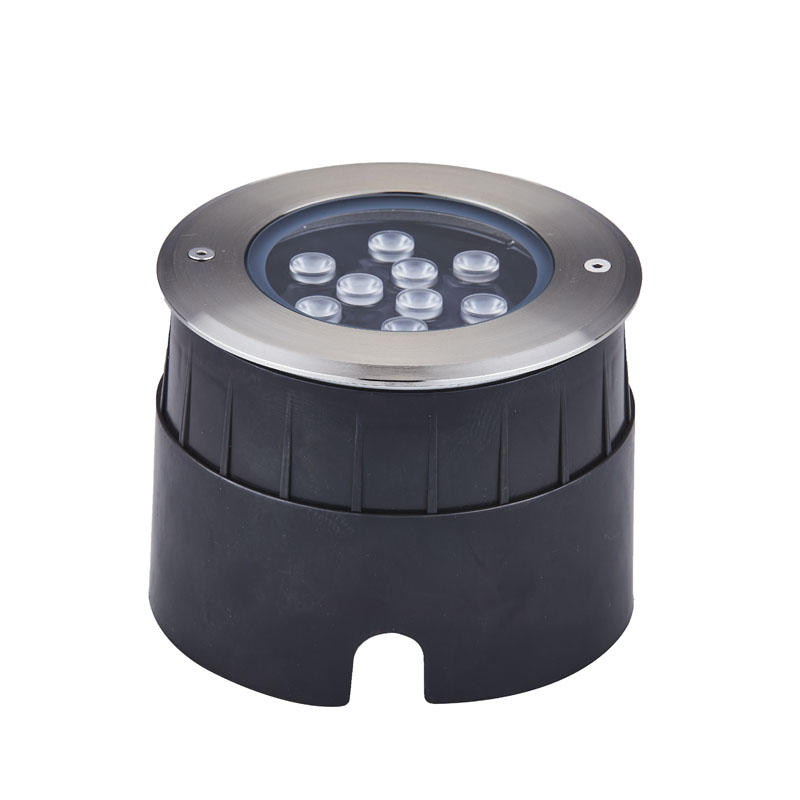

GE08241

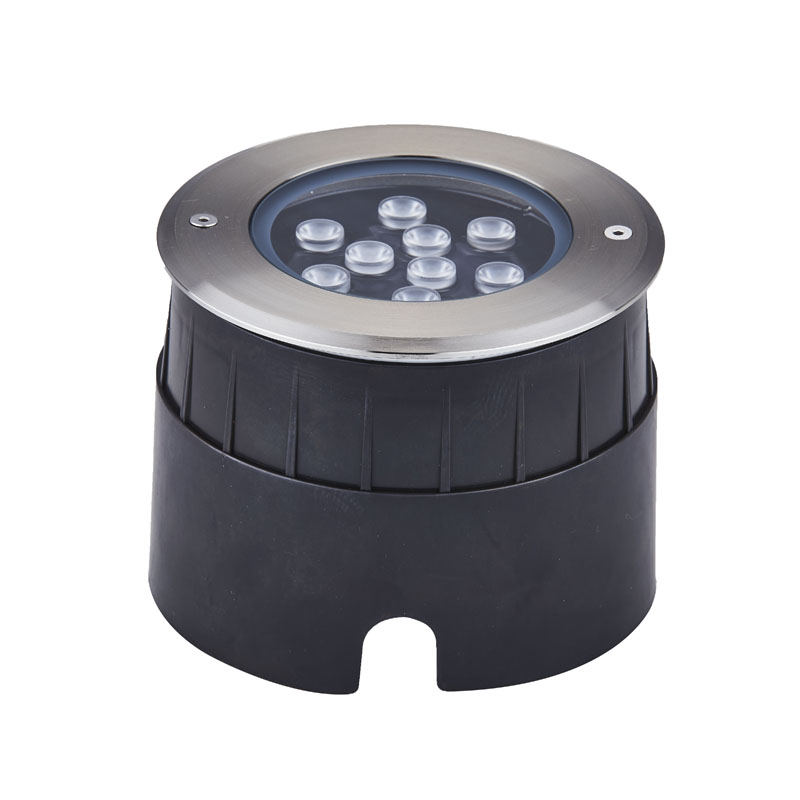

GE08341

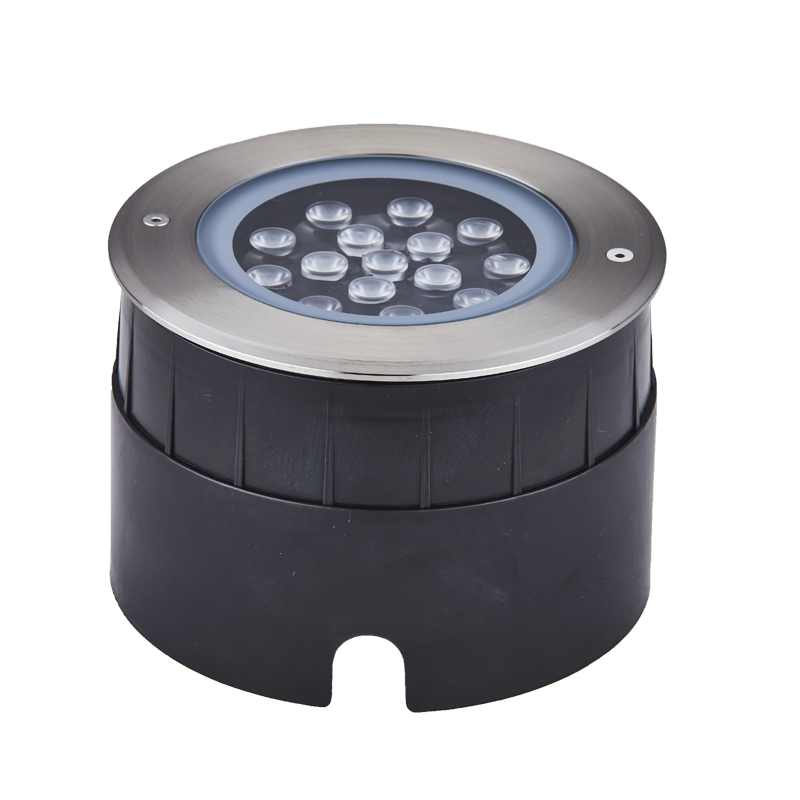

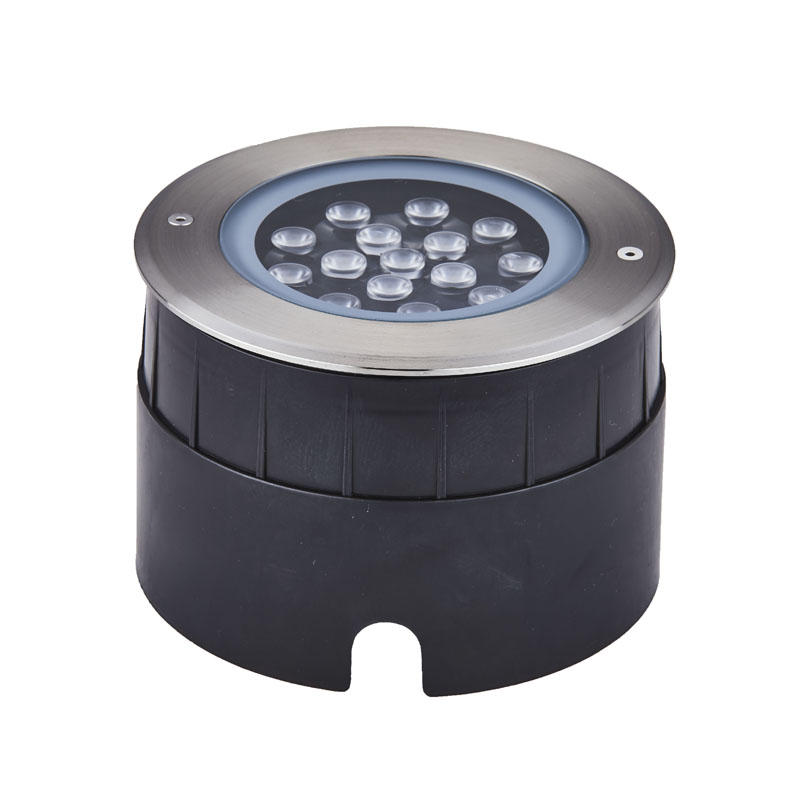

GE08441

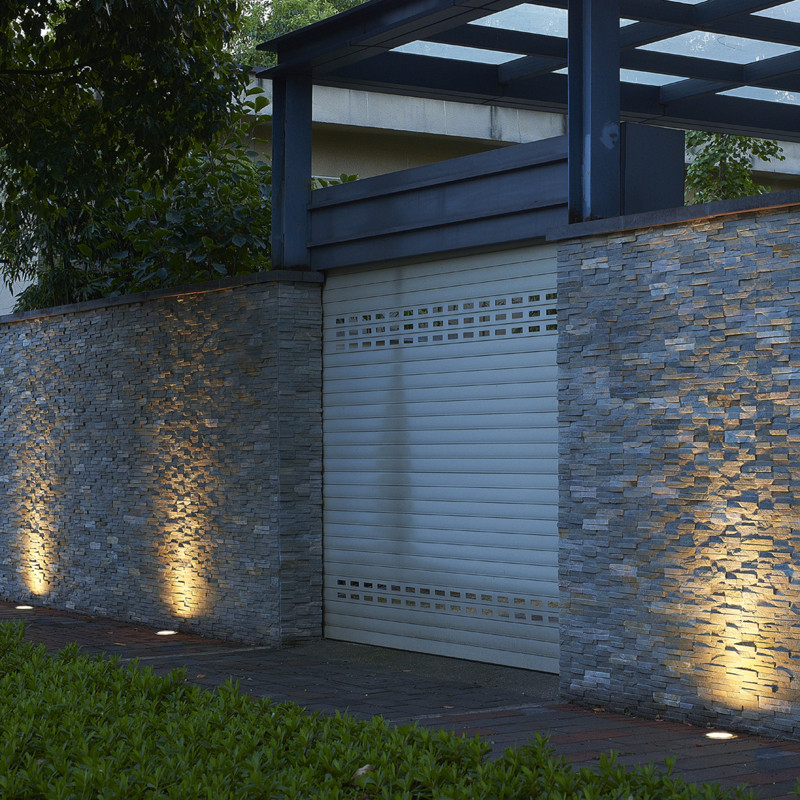

GE08441
GE08441

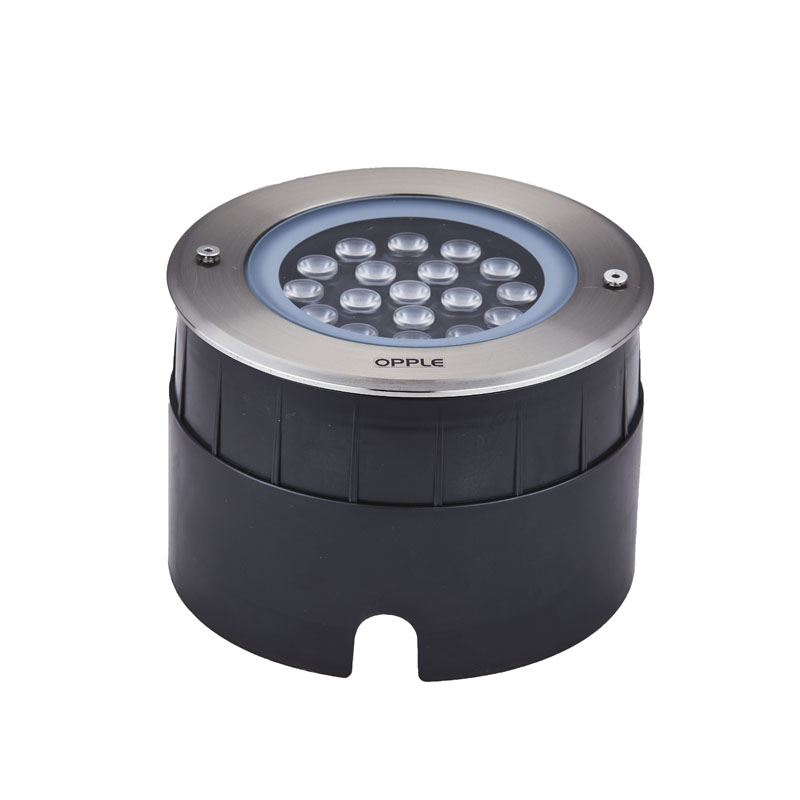

GE08541
GE08541

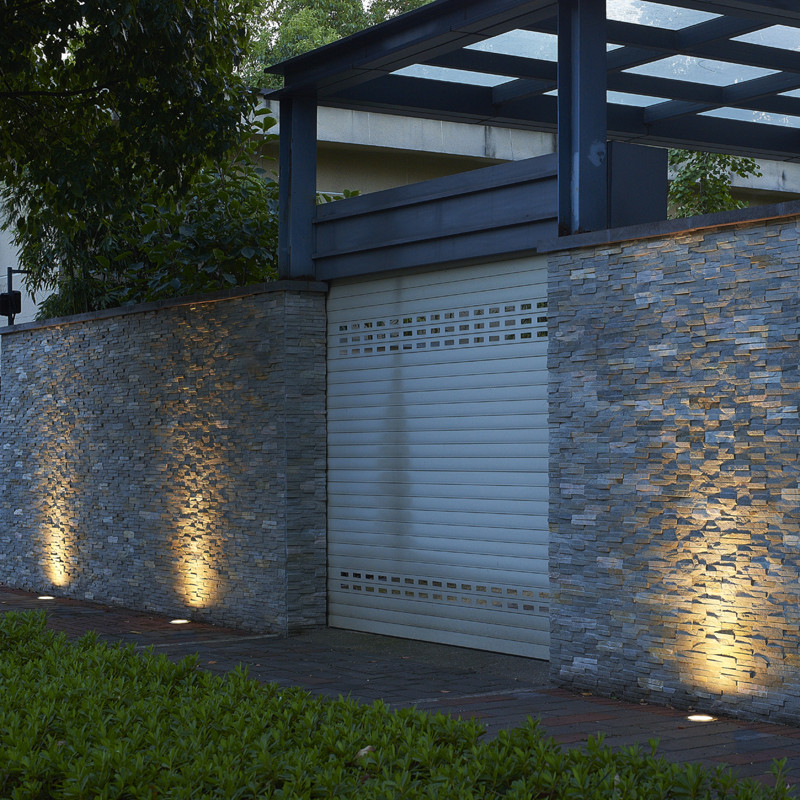

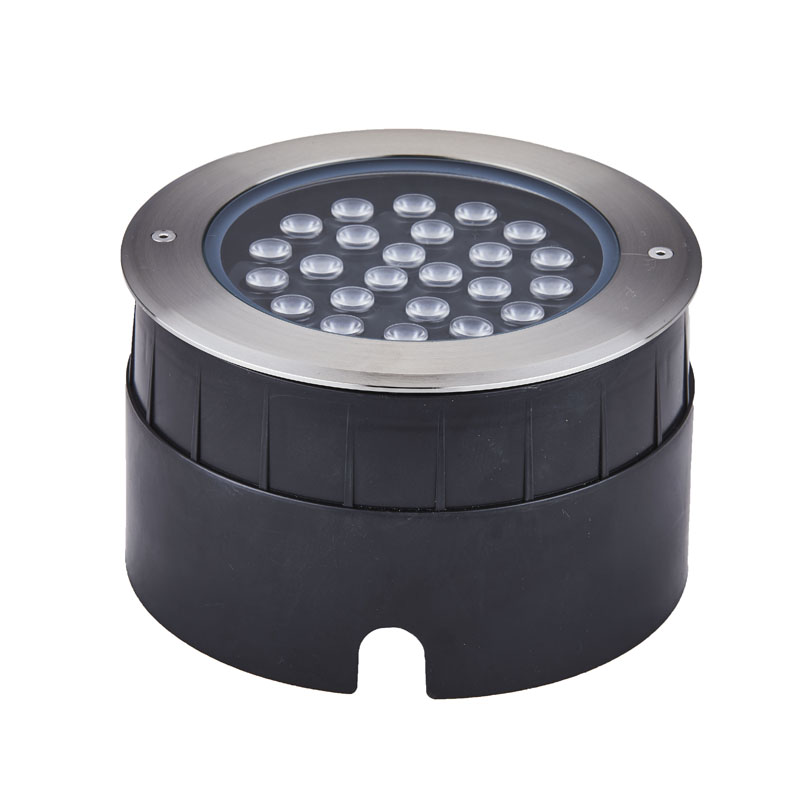

GE08641
GE08641
